In Application Insights, under option 'Dashboard for Grafana', How to create sqlserver datasource?

Question

In Application Insights, under option 'Dashboard for Grafana', How to create sqlserver datasource?

Jignesh Desai 151

Hi,

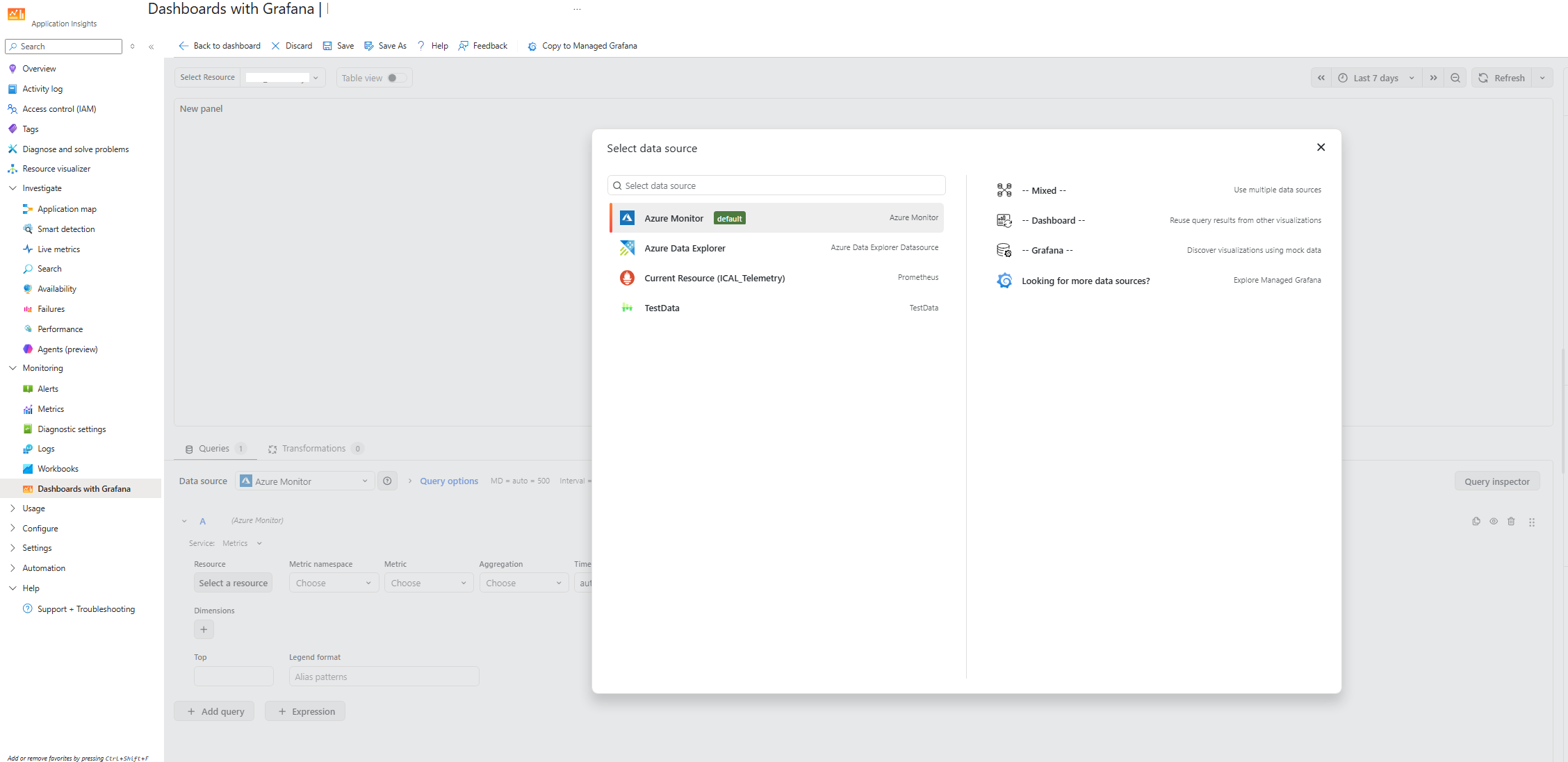

One Simple Question: In Application Insights, under option 'Dashboard for Grafana', I want to bring some data from sqlserver into Dashboard for Grafana, but I can't find a way to create SQL server data source. Any assistance please.

Regards

User's image

Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-21T07:12:02.1133333+00:00

Hello Jignesh Desai

Thank you for posting your query on Microsoft Q&A platform.

We are looking into this issue and will keep you posted investigation updates.

Thanks,

Suchitra.
Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-21T07:54:19.6433333+00:00

Hello Jignesh Desai

Could you please let us know if the comment above resolved your issue? If you need any further assistance, feel free to reach out and we're always here to support you.

If you found the comment helpful, please consider clicking "Upvote it."

Thanks,

Suchitra.
Jignesh Desai 151 Reputation points

2026-04-21T14:18:37.0933333+00:00

Yes query is answered.
but Sigh! SQL Server is not supported in embedded "Dashboards with Grafana". I wish it was, as we do not want to spend much immediately on Azure Managed Grafana for now.

Thanks for your response. @Suchitra Suregaunkar
Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-22T09:29:34.3633333+00:00

Hello Jignesh Desai

You can share your valuable feedback with our product group team using the link below. They will review it and implement it in the future. https://feedback.azure.com/d365community

Thanks,
Suchitra.

1 answer

Your answer

Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-21T07:12:02.1133333+00:00

Hello Jignesh Desai

Thank you for posting your query on Microsoft Q&A platform.

We are looking into this issue and will keep you posted investigation updates.

Thanks,

Suchitra.
Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-21T07:54:19.6433333+00:00

Hello Jignesh Desai

Could you please let us know if the comment above resolved your issue? If you need any further assistance, feel free to reach out and we're always here to support you.

If you found the comment helpful, please consider clicking "Upvote it."

Thanks,

Suchitra.
Jignesh Desai 151 Reputation points

2026-04-21T14:18:37.0933333+00:00

Yes query is answered.
but Sigh! SQL Server is not supported in embedded "Dashboards with Grafana". I wish it was, as we do not want to spend much immediately on Azure Managed Grafana for now.

Thanks for your response. @Suchitra Suregaunkar
Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-22T09:29:34.3633333+00:00

Hello Jignesh Desai

You can share your valuable feedback with our product group team using the link below. They will review it and implement it in the future. https://feedback.azure.com/d365community

Thanks,
Suchitra.

Answer 1

Hello Jignesh Desai

The "Dashboards with Grafana" feature embedded within Application Insights is a lightweight, built-in Grafana experience in the Azure portal. By design, it only supports Azure-native data sources specifically Azure Monitor and Azure Managed Prometheus.

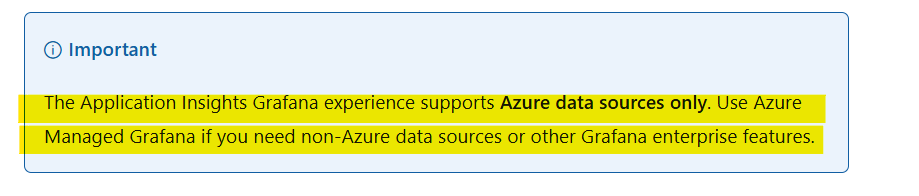

User's image This means Microsoft SQL Server cannot be added as a data source in the embedded "Dashboards with Grafana" experience. That's why you're unable to find the option to create a SQL Server data source there.

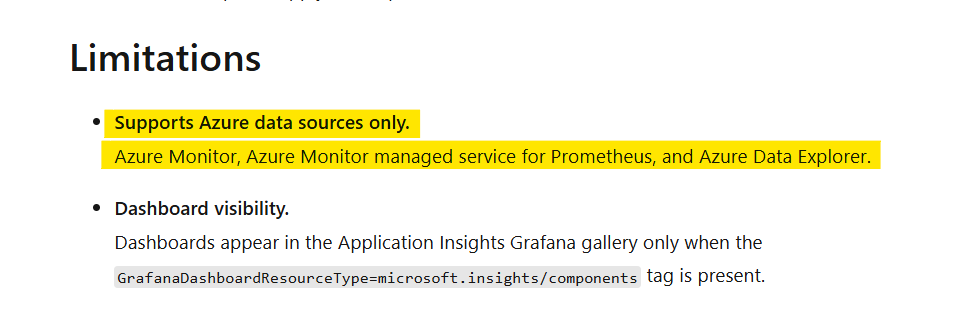

User's image Reference: https://learn.microsoft.com/en-us/azure/azure-monitor/app/grafana-dashboards

To bring SQL Server data into a Grafana dashboard, you need to use Azure Managed Grafana with the Standard service tier. The Standard tier supports Microsoft SQL Server (MSSQL) as a built-in core Grafana data source.

Steps to Add SQL Server Data Source in Azure Managed Grafana:

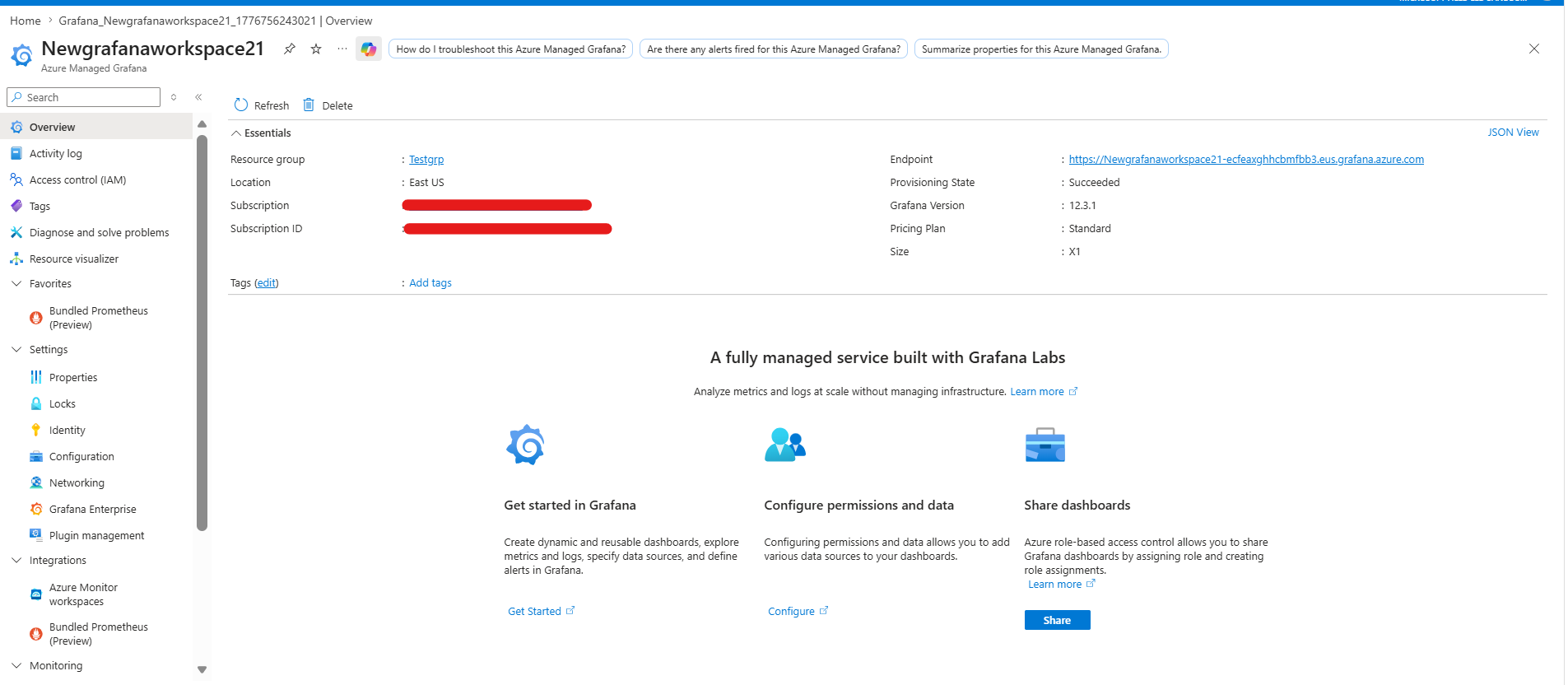

Create an Azure Managed Grafana workspace (Standard tier) from the Azure portal if you don't have one already.
Open your Grafana workspace and go to Overview > Endpoint to launch the Grafana UI.

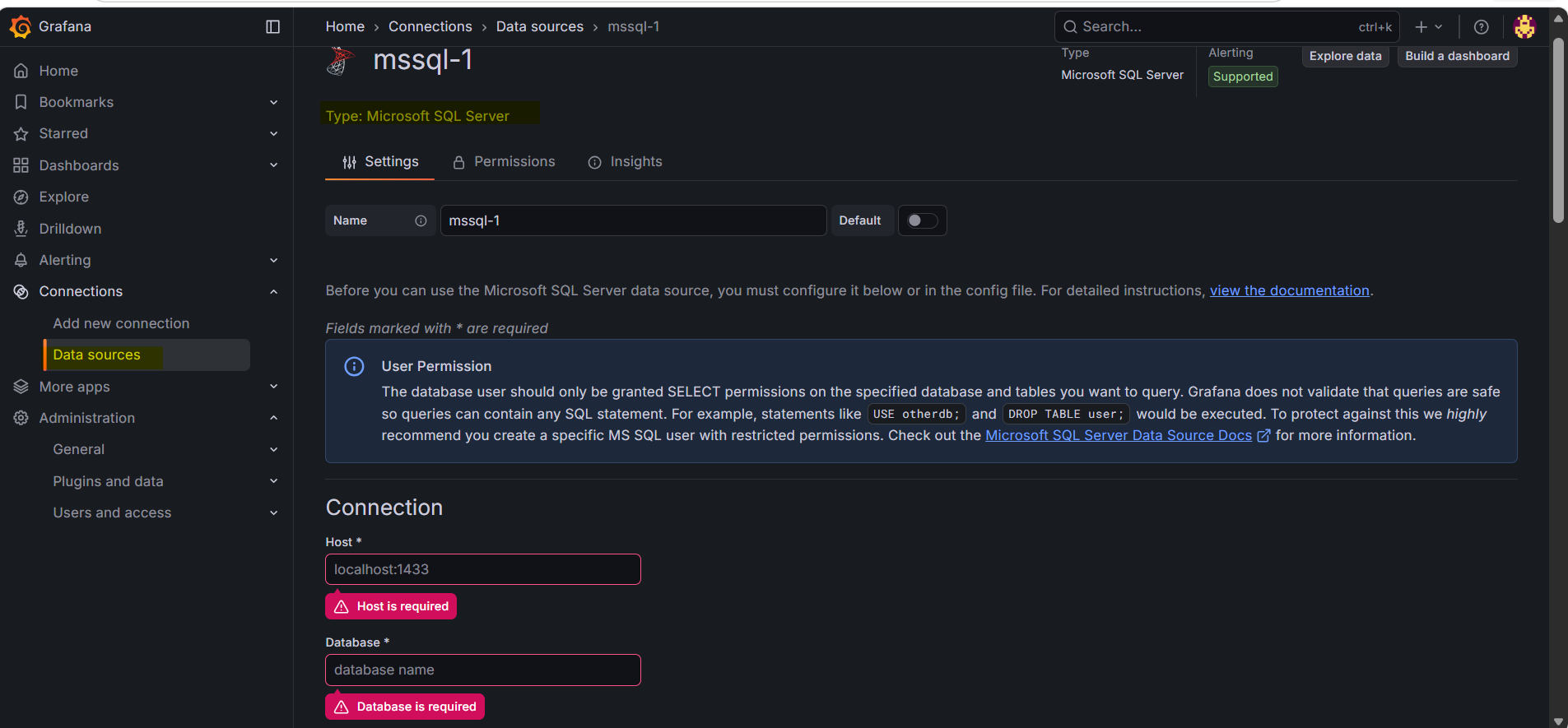

In the Grafana UI, navigate to Connections > Data sources > Add new data source.
Search for and select Microsoft SQL Server.
Fill in the connection details:
- Host - IP address or hostname (and optional port, default is 1433) of your SQL Server instance.
- Database - Name of the database to connect to.
- Authentication - Choose between SQL Server authentication (username/password), Windows/Kerberos, or Azure Entra ID (managed identity or app registration).
Click Save & Test to verify the connection.

Note: Grafana must have network access to your SQL Server instance (default port 1433). If your SQL Server is in a private network, you may need to configure Private data source connect or adjust firewall/NSG rules accordingly.

Reference: https://grafana.com/docs/grafana/latest/datasources/mssql/configure/

So, the embedded "Dashboards with Grafana" in Application Insights is limited to Azure data sources only. To use SQL Server as a data source, you would need to set up an Azure Managed Grafana workspace on the Standard tier, where Microsoft SQL Server is available as a built-in data source.

Thanks,
Suchitra.

Suchitra Suregaunkar 13,785 Reputation points Microsoft External Staff Moderator

2026-04-22T09:30:15.75+00:00

Hello Jignesh Desai

I hope the details shared above helped in addressing your concern.

If the suggested resolution resolved the issue, kindly consider marking the answer as "Accepted" and "Upvote" it. This helps other community members who may encounter a similar issue in the future.

If you’re still experiencing the problem or need further clarification, please feel free to share additional information so we can continue investigating and assist you further.

Thanks,
Suchitra.
