SSIS Package Fails with System.Data.SQLite Could Not Load Error (E_POINTER)

Question

SSIS Package Fails with System.Data.SQLite Could Not Load Error (E_POINTER)

Ishika Raiyani 20

I have deployed an SSIS project using an .ispac file into SSISDB. The project contains Cdata Odoo components and Kingswaysoft toolkit.

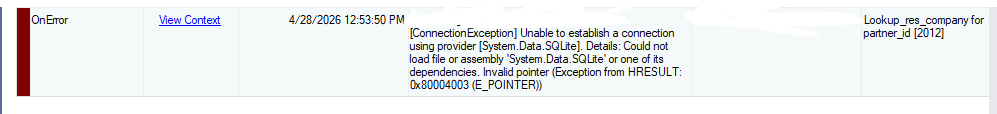

When I try to execute the package (both from SSISDB and from Visual Studio), it fails with the following error: Uploaded image

[ConnectionException] Unable to establish a connection using provider [System.Data.SQLite]. Details: Could not load file or assembly 'System.Data.SQLite' or one of its dependencies. Invalid pointer (Exception from HRESULT: 0x80004003 (E_POINTER))

I have already installed System.Data.SQLite on the machine, but the error still occurs in both environments.

Question:

What is the correct way to configure or install System.Data.SQLite so that SSIS can properly load it during package execution?

Are there additional steps required (such as handling dependencies, runtime architecture, or deployment configuration) to resolve this issue?

0 comments

1 answer

Your answer

Answer 1

Akhil Gajavelly 1,820 Microsoft External Staff Moderator

Hi @Ishika Raiyani ,

This error is usually caused by architecture mismatch or missing native dependency.

To Fix follow bellow steps,

Install the official System.Data.SQLite bundle (not just DLL)

Ensure both files are available:

System.Data.SQLite.dll

SQLite.Interop.dll (required)

Match runtime:

SSISDB/SQL Agent → 64-bit

Visual Studio → set Run64BitRuntime = True (or install x86 as well)

Copy DLLs to:

C:\Program Files\Microsoft SQL Server<version>\DTS\Binn\

Install VC++ Redistributables (x86 & x64)

Root Cause

Missing SQLite.Interop.dll or 32/64-bit mismatch causes the E_POINTER error.

Thanks,
Akhil.

Ishika Raiyani 20 Reputation points

2026-04-29T10:04:13.5333333+00:00

I followed the recommended steps:

Installed the official System.Data.SQLite bundle

Copied the DLLs to:

C:\Program Files\Microsoft SQL Server<version>\DTS\Binn\

Verified runtime settings (64-bit execution)

Installed VC++ Redistributables (x86 & x64)

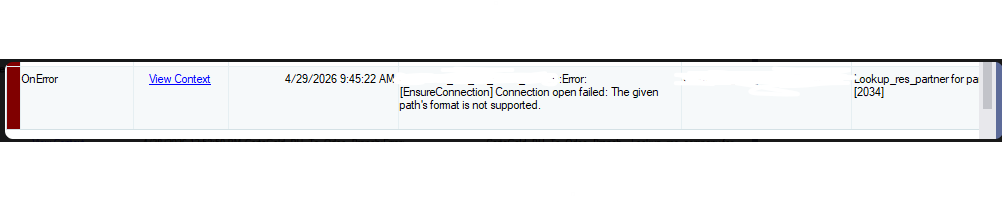

After applying these changes, I am now encountering a different error when running the package (both in SSISDB and Visual Studio):

Question:

Since the original SQLite assembly issue seems to be resolved, how should I proceed with troubleshooting this new error?
Akhil Gajavelly 1,820 Reputation points Microsoft External Staff Moderator

2026-05-04T10:40:07.5066667+00:00
Hi @Ishika Raiyani ,

Thanks for confirming that means the SQLite issue is resolved.

The new error, “The given path’s format is not supported” is not related to SQLite. It indicates an issue with the file path/connection string used in your package. Try bellow steps

Verify any file paths or connection strings used in:
CData Odoo connection
Flat file / SQLite source

Ensure the path is:

A valid absolute path (e.g., C:\folder\file.db or \server\share\file.db)

Not empty, malformed, or containing invalid characters

If using parameters/variables, confirm they are resolving correctly at runtime (SSISDB vs VS can differ)

Add a temporary Script Task or logging to print the final resolved path this usually reveals the issue immediately.

This is now a path/configuration issue, not a driver problem.

Thanks,
Akhil.
